In today’s increasingly complex energy development and geological drilling, PDC Cutters has become the key to improving drilling efficiency. With the continuous increase of drilling depth and the changing of formation conditions, traditional cutting tools have been difficult to meet the requirements of faster, more stable and more durable operation.

As the core component of high-performance drill bit, the shape design of PDC Cutters is not only a mechanical manufacturing technology, but also a comprehensive embodiment of mechanics, materials science and engineering simulation technology. Different shapes of PDC Cutters-from Flat shape, Ridge Shape, Step Shape to Triangle, Micro Arc Shape-have their own advantages in rock breaking mechanism, chip removal capacity and wear resistance, providing more targeted solutions for different formations and working conditions.

This paper will systematically analyze the various shape design, manufacturing concepts and application scenarios of PDC Cutters, and explore in depth how they can empower drilling efficiency, extend drill life, and ultimately reduce overall drilling costs through scientific geometric optimization and material engineering innovation.

Classification and Application of PDC Tool Shape

Flat PDC Cutter:

Flat PDC Cutter has a standard and flat cutting surface. This design seems simple, but in fact it contains our ultimate pursuit of stability and reliability. In the manufacturing process, we use a precise sintering process to ensure a strong metallurgical bond between the diamond layer and the cemented carbide substrate, while strictly controlling the flatness to provide uniform cutting force. This is a fundamental but extremely important link, and any slight deviation may affect the performance of the Cutters.

This is our most common and widely used type of Cutters. It performs well in a variety of formations, especially in medium hardness and better uniformity. Flat PDC Cutter is the backbone of the full-size drill bit design to provide stable cutting and excellent wear life. For example, in the shallow or middle drilling of conventional oil and gas wells, it has become the first choice because of its reliability, and its performance has been very stable.

The advantages of Flat PDC Cutter are its excellent cost-effectiveness, stable cutting efficiency and wide applicability. It is like the “golden oil” of the PDC Cutters family and can do most jobs.

Model	Diameter (inch)	Thickness (inch)	Diameter (mm)	Thickness (mm)	Typical Application
0804	1.000	0.500	25.4	12.7	Medium-size drill bits, oil & gas drilling
0808	1.000	1.000	25.4	25.4	Thick cutter, high impact resistance, hard formations
1008	1.250	1.000	31.75	25.4	Coal mining, geothermal drilling
1204	1.500	0.500	38.1	12.7	General formation cutting
1208	1.500	1.000	38.1	25.4	Balance between wear and impact resistance
1304	1.625	0.500	41.3	12.7	Large bit cutting face
1308	1.625	1.000	41.3	25.4	Most common for PDC drill bit main cutters
1313	1.625	1.625	41.3	41.3	Ultra-thick type, high impact, hard rock drilling
1608	2.000	1.000	50.8	25.4	Large-diameter bit applications

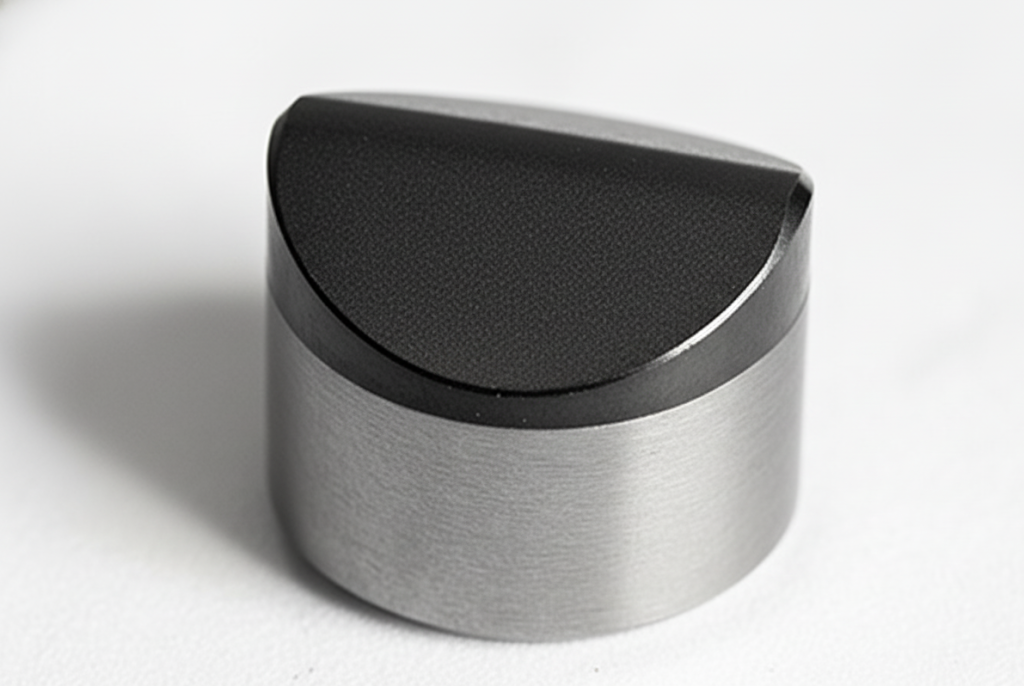

Ridge Shaped PDC Cutter & Ridge Shaped Trade PDC Cutters:

The core of the design concept of Ridge Shaped PDC Cutter is to improve the efficiency of rock breaking by increasing the length of the cutting edge and achieving stress concentration. When a sharp “ridge” breaks rock, the pressure per unit area will be greater, making it easier to penetrate hard formations. As for Trade PDC Cutters, this usually refers to Ridge Shaped PDC Cutters that we have unique patents or brand designs. They may innovate in the geometry and arrangement of the ridges to achieve differentiated performance advantages. This is indeed much more complex than Flat PDC Cutter, and the precision of molding and sintering technology required during manufacturing is extremely high, ensuring that each ridge can maintain consistent strength and geometry.

The advantages of Ridge Shaped PDC Cutter are evident in the face of high hardness, heterogeneous formations or conditions with higher requirements for rock breaking efficiency. It can also play a key role in lateral drilling or horizontal wells because it provides better steering and torque control. In complex formations such as shale gas and tight sandstone, the performance of Ridge Shaped PDC Cutter is often eye-catching.

Its main advantages are significantly improved rock breaking efficiency, more accurate torque control, and can effectively reduce the bit in the hard formation of the beat phenomenon.

In order to optimize the performance of the Ridge Shaped PDC Cutter, we have invested a lot of resources in simulation analysis. With advanced tools such as CFD and FEA, we can precisely optimize the ridge structure to achieve the best balance of breaking performance and Cutters life.

Step Shaped PDC Cutters:

The Step Shaped PDC Cutters has a unique multi-step design, which is designed to achieve “step cutting”. To put it simply, the rock breaking process is broken down into several small steps, and each step is responsible for part of the cutting task. The ingenuity of this graded cutting is that it can effectively crush larger cuttings and guide them to discharge efficiently to avoid getting stuck at the bottom of the drill bit. When manufacturing this kind of Cutters, we need extremely high precision to control the geometric size and spacing of each step, and a little error may affect its chip removal efficiency.

When encountering large diameter drill operations, or in soft and hard interlaced formations that require efficient chip removal and are prone to bit balling, Step Shaped PDC Cutters is our best choice. In the drilling process, it can effectively disperse the cutting force, so as to better control the cutting force and bit vibration, and make the drilling process more stable. For example, in clay formations or gravel-containing formations, its ability to remove chips is particularly prominent.

The most significant advantage of Step Shaped PDC Cutters is its excellent chip removal ability, which can greatly reduce the risk of bit mud, thereby extending the service life of the drill bit, and the cutting process is more stable.

In order to ensure the anti-cracking performance of the step edge, we will work hard on the material selection and heat treatment process. At the same time, on the production line, we have extremely strict size control of step tools to ensure that each tool can perform the expected grading cutting and chip removal effects.

Triangular Shaped PDC Cutters:

As a specialist manufacturer of PDC Cutters, we know that tool performance is critical in harsh drilling environments. Today, I want to talk to you about our proud Triangular Shaped PDC Cutters, which is truly impressive in terms of penetration and stability.

From the beginning of the design, the positioning of the Triangular Shaped PDC Cutters was very clear: for the hardest and most difficult to conquer strata. Its geometric characteristics, especially the sharp cutting angle, can highly concentrate the stress in the rock, thus providing unparalleled penetration.

We usually use this type of Cutters for special drill designs, especially those optimized for cutting very hard rock. Of course, manufacturing this Cutters is not easy. How to maintain the strength and sharpness of the sharp corners during the high-pressure and high-temperature sintering process, while ensuring the perfect combination of the diamond layer and the cemented carbide substrate, which involves our large R & D investment and patent technology.

When encountering extremely hard formations, abrasive formations, or any scenario that requires concentrated stress breaking, triangular PDC tools are often our first choice. Its advantage is that it can apply high pressure “point to point” and effectively break up rocks that are difficult to cut by conventional tools.

Sometimes, we also recommend the use of Triangular Shaped PDC Cutters with other shapes of Cutters to take advantage of the combination, such as the need for both high penetration and good borehole cleaning during drilling. For example, when drilling in hard rock formations such as granite and basalt, the performance of the Triangular Shaped PDC Cutters often exceeds expectations, which can effectively increase the drilling speed and reduce the cost of a single drilling.

In summary, the most prominent advantage of the Triangular Shaped PDC Cutters is its extremely high rock penetration. At the same time, due to its unique geometric structure, it can also provide good directional stability and effectively reduce deflection during drilling, which is essential to ensure the accuracy of the wellbore trajectory.

During the development process, we invested significant resources to optimize the Triangular Shaped PDC Cutters. Using advanced numerical simulation technology, we have repeatedly tested the Triangular Shaped PDC Cutters of different angles and sizes, and strive to find the best balance of performance in theory. This is not only to maximize its rock breaking performance, but also to ensure that each piece of Cutters can be stable and reliable in practical applications, and value for money. We believe that only through such continuous improvement can we truly create value for our customers.

Micro Arc Shaped PDC Cutters:

Next, I would like to share with you another innovative product, the Micro Arc Shaped PDC Cutters. If the triangular tool is a symbol of strength and penetration, then the Micro Arc Shaped PDC Cutters represents the art of refinement and composite cutting.

The core design of the Micro Arc Shaped PDC Cutters is its tiny arc or compound surface. This design is no accident. It is the result of repeated optimization by our engineering team after in-depth study of cutting force distribution and stress concentration mechanism. Through this unique surface, we can distribute the cutting force more evenly, effectively reducing the stress concentration that may occur during the cutting process, thereby significantly improving the impact resistance and service life of the Cutters.

As a professional supplier focusing on high-end PDC Cutters, we know that the manufacturing process of Micro Arc Shaped PDC Cutters is extremely fine. From the sintering of the diamond layer to the final grinding and polishing, each step requires the most advanced equipment and the most stringent quality control. This is really an area that requires expertise and sophisticated technology, so we emphasize our “supplier” role, because this in itself represents a kind of specialization and quality assurance.

The Micro Arc Shaped PDC Cutters is suitable for special or high-value well sections where cutting depth control, drilling vibration suppression and tool life are extremely demanding. For example, in a directional well, it is necessary to accurately control the trajectory of the well to reduce the impact of vibration on the instrument and the well wall; in a complex formation transition zone, it is necessary to smoothly switch from one lithology to another lithology to avoid formation damage; and Those scenarios that pursue ultra-long bit life and hope to reduce the number of tripping to save costs.

Our customer feedback shows that the Micro Arc Shaped PDC Cutters can effectively ensure the integrity of the well wall while improving ROP, which is self-evident for oil and gas production. It does provide a smoother drilling experience, which is one of our goals.

The advantage of the Micro Arc Shaped PDC Cutters is its excellent impact resistance, which directly translates into a longer Cutters life. In practical application, it can bring a more stable drilling process and reduce the damage of vibration to the drilling tool and the formation. Of course, smoother cutting also means higher drilling speed potential, which is very helpful to improve drilling efficiency.

As Cutters Supplier of the Micro Arc Shaped PDC, we are aware of the responsibilities on our shoulders. We not only have a number of patented technology to ensure the uniqueness and effectiveness of Cutters design, but also through a set of extremely strict quality control system throughout the production process. From the selection of raw materials to the inspection of the final product, every link strives for perfection. We firmly believe that only in this way can we ensure that every piece of Micro Arc Shaped PDC Cutters delivered to customers can meet the highest performance standards we promise, which is also the cornerstone of our corporate reputation.

How PDC Cutter Enables Drilling Efficiency

Increase Rate of Penetration:

Improving ROP, the primary goal of our PDC Cutter design, is the most intuitive measure of drilling efficiency.

The shape design of the PDC Cutter is far more complex and subtle than you might think. We put a lot of effort into studying the rock breaking mechanism of different strata, and developed a variety of PDC Cutter shapes.

For example, for hard abrasive formations, we have Ridge Shaped PDC Cutter, which can effectively concentrate stress and “split” rock like a wedge. The Step Shaped PDC Cutters can provide a larger effective cutting area and achieve more efficient continuous rock breaking. There is also the Micro Arc Shaped PDC Cutters, which better distributes stress during cutting while providing a “graded rock breaking” effect. Through advanced CFD and FEA simulations, we optimize the Cutters geometry over and to ensure that our Cutters can achieve the best ROP performance when facing different rock types.

Of course, having a good shape is not enough. The quality of the diamond layer, the choice of the substrate material and the sintering process of the PDC Cutters are the key to the cutting sharpness and durability of the PDC. We are well aware of the importance of a strong bond between the PDC layer and the substrate, which is directly related to whether the Cutters will fail at a critical moment.

Therefore, each batch of PDC layer raw materials are strictly screened, and the use of proprietary high-pressure high-temperature sintering technology to ensure that the diamond layer and cemented carbide substrate between the formation of a strong metallurgical bond. In addition, the unique heat treatment process is also one of our secret weapons, which can significantly improve the overall toughness and impact resistance of the Cutters. Simply put, our Cutters can have a longer service life while maintaining a high ROP, which is really fast and durable.

Extended bit life and reduced Non-Productive Time

Reducing NPT means a cost every second for drilling operations.

To extend the life of the drill bit, we must first start with Cutters wear. Some special Cutters shapes, such as Micro Arc Shape and dome shape, are designed to better distribute cutting stress and reduce the concentration of wear in specific areas, so that the Cutters wears more evenly and slowly. At the same time, the optimized chip removal groove design can also effectively take away the cutting debris, avoid secondary grinding, and further reduce wear. When designing, we even take into account the “self-sharpening” of the Cutters-even during wear, it can maintain a sharp cutting edge to a certain extent and extend its effective working time.

In complex formations, Cutters are susceptible to shocks and breakages, which tend to be a major source of non-productive time. In order to solve this problem, we have conducted in-depth research from the grain structure of the PDC layer to the selection of the matrix material. By optimizing the diamond grain structure, we enhance the toughness of the PDC layer itself; at the same time, strengthen the binding force of the PDC layer and the matrix, but also make the Cutters in the face of hard interlayer or formation changes, can better resist the impact, not easy to crack. We carry out strict impact tests and wear tests on each batch of products to ensure that they can maintain stable performance under the harshest working conditions.

Improve drilling stability and borehole quality

Drilling should not only be fast, but also steady and straight.

Unstable bit vibration and torque fluctuation will not only affect the drilling speed, but also accelerate the wear of the bit, and may even cause the well deviation. Through careful Cutters layout and water eye design, we let different shapes of Cutters work together to optimize the balance of cutting forces. In this way, the drill bit can maintain less radial and axial vibration during the drilling process, and achieve a smoother torque output.

Borehole quality is the basis for subsequent completion and production. We know this well, and therefore have an almost paranoid pursuit of geometric accuracy and consistency of PDC Cutters. Every Cutter factory must be accurate in size and shape. This ensures that the correct trajectory is maintained when the drill bit is run into the formation, avoiding oversized or undersized boreholes. A regular borehole not only reduces the risk and cost of well completion, but also lays a solid foundation for subsequent oil and gas production.

Lower Overall Drilling Cost

Ultimately, all efforts are directed toward one goal: reducing integrated drilling costs.

When ROP is improved, the drilling cycle is naturally shortened; when NPT is reduced, the cost of non-production time is reduced; when drilling stability is improved, the wear of drilling tools and downhole equipment is also reduced. These single efficiency gains ultimately converge into one huge benefit-a significant reduction in overall drilling costs.

For us, the PDC Cutters is not only a product, but also a solution for our customers to achieve the goal of “lower cost, higher efficiency” drilling. We not only provide high-quality PDC Cutters, but also provide customized and high-performance PDC Cutters solutions through in-depth understanding of customers’ drilling needs and formation characteristics. We believe that by working closely with our customers, our PDC Cutters can help you optimize your overall drilling operations and maximize true value.

In the field of drilling where fierce competition and high cost challenges coexist, the innovative form of PDC Cutters is becoming a key variable for industry breakthroughs. Whether it is a triangular design that focuses on penetration, a Micro Arc Shape that pursues smooth cutting, or a Ridge Shape that takes into account both steering and impact resistance, they all represent the continuous evolution of drilling technology.

We know that each piece of PDC Cutter is not just a composite diamond, but a promise of reliability and high performance. Through continuous material optimization, simulation analysis and precision manufacturing, we continue to drive drilling efficiency to a higher level.

In the future, we will continue to focus on innovation and work with global partners to provide more competitive drilling solutions for oil and gas, geothermal and mineral extraction.

The diverse forms of PDC Cutters are not only about form, but also about the ultimate pursuit of efficiency and value.
