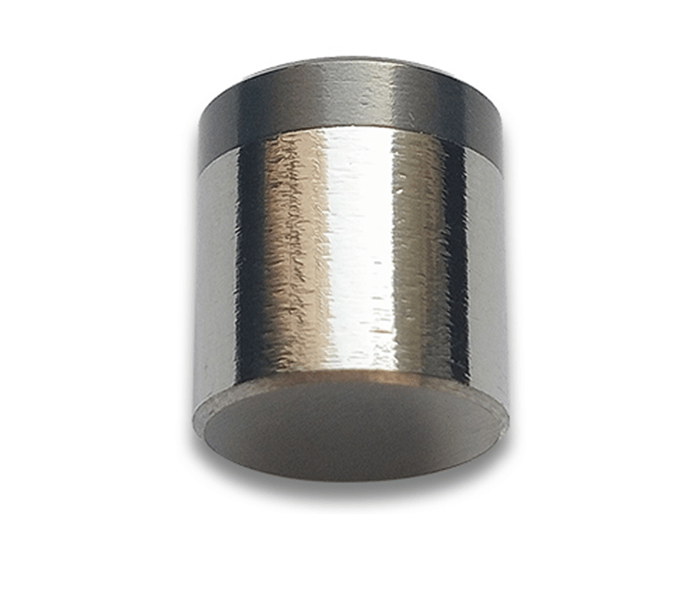

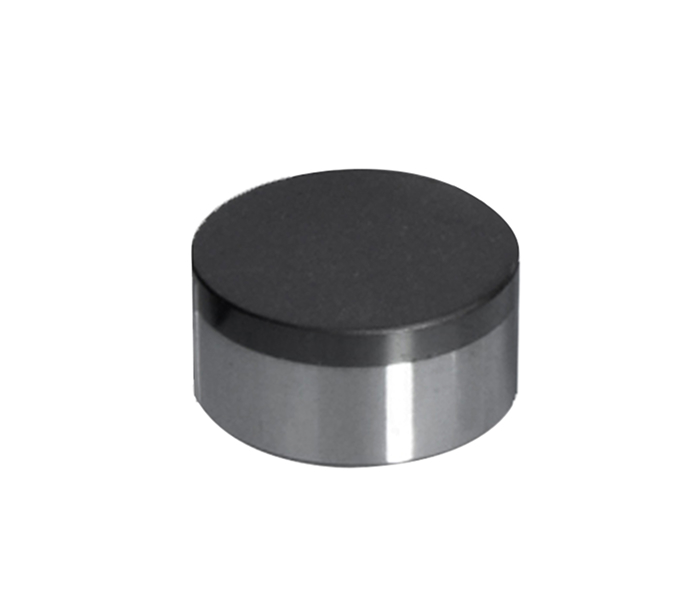

Flat PDC Cutter

Flat PDC Cutter features a flat structure for uniform force distribution, exceptional wear resistance for long service life, and a versatile, cost-effective design.

Application：Oil and gas, Water Wells, Coal Mining
Placement：Primary Cutter、Gauge Cutter
Size：0808 1013 1108 1305 1308 1313 1608 1613 1616 1908 1913 1916

PRODUCTDESIGN

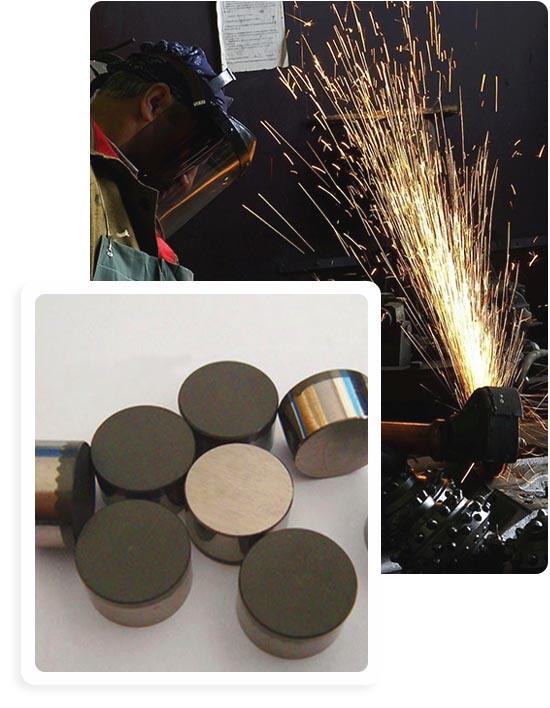

Flat PDC Cutters are manufactured through a unique high-temperature and high-pressure process using customized raw materials, complemented by technologies like finite element analysis, temperature, and pressure measurement, ensuring excellent performance. Structurally, they consist of a polycrystalline diamond layer (for wear resistance and impact toughness) and a tungsten carbide substrate (for support and stability).

Depending on the application market and drill bit position, Flat PDC Cutters are available in various types: economic (TRA), wear-resistant (TD), impact-resistant (TC), and comprehensive (TAH), catering to diverse formations and drilling conditions.

Excellent Wear Resistance

Using a polycrystalline diamond layer, Flat PDC Cutter have extremely high hardness.

Customized Services

Customized according to specific needs, including shape, wear resistance, impact resistance, etc.

Preeminent Thermal Stability

It is not easy to deform or fail due to thermal expansion, thus ensuring the continuity and safety of drilling operations.

Outstanding Impact Resistance

With strong shock and vibration, thereby extending the service life.

The Features of Flat PDC Cutter

Flat structure provides uniform force
High wear resistance for long service life
Highly versatile and cost-effective

PRODUCTSPECIFICATIONS

Type	Diameter	Height	Diamond layer height	Diamond chamfer size	Carbide chamfer size
OGF0808	8.00/8.20mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF0813	8.00/8.20mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1008	10.00mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1013	10.00mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1308	13.44mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1313	13.44mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1608	15.88/16.10mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1613	15.88/16.10mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1908	19.05mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1913	19.05mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°

OURADVANTAGES

These distinct advantages can significantly aid Field Diamond in distinguishing itself amidst the fiercely competitive market landscape, effectively bolstering its overall competitiveness and positioning it as a leading player in its industry.

Leading Technology Innovation
High Production Efficiency
Optimized Cost Control
Strict Quality Control
Green and Environmentally Friendly Production

16K+

Customer

Satisfied

500+

Campaigns

98%

Client Satisfaction

7+

Years Experiences

15+

Certified Experts

APPLICATIONAREAS

Natural gas & Oiloperation ——

Down-the-hole hammer ——

Water well building ——

Geological

exploration ——

• All Projects

With the strength and impact resistance of cemented carbide, it is an ideal material for manufacturing wear-resistant tools such as cutting tools and drills, and has a wide range of applications in oil drilling, geological exploration, coal mine drills, mechanical processing tools and other industries.

With its exceptional strength and impact resistance, cemented carbide is an ideal material for manufacturing wear-resistant tools, widely applied in oil drilling, geological exploration, mining, machinery, and more.

More applications

FACTORYSHOWCASE

Field Diamond help companies stand out in the fierce market competition.

Our factory integrates advanced equipment, exquisite technology and efficient management, and ensures excellent product quality with strict quality control system. We have a professional research and development team, continuous innovation, to meet the needs of diversified markets. Large-scale production to reduce costs, to provide cost-effective quality products, to win customer trust and praise.

325+

Complete Projects

15+

Certified Experts

750+

Innovative Solutions Deployed

1000+

Milestones Achieved in Development

Scale production

Advanced equipment, production processes.

High-effect

High degree of equipment automation, excellent product quality and stability.

Lean manufacturing

Intelligent and efficient equipment, streamlined and smooth process.

PRODUCTCERTIFICATES

The company’s honor certificate highlights the strength of the enterprise, enhances the brand image, enhances customer trust, helps market expansion, and promotes cooperation opportunities.

Credibility Enhancement

Company certificates directly reflect corporate credibility, significantly boosting the trust of customers and partners.

Market Expansion

Attract more potential customers and partners, and bring more business opportunities for enterprises.

Compliance Assurance

Companies can demonstrate compliance with industry standards and legal and regulatory requirements to reduce operational risk.

CONTACTUS

+86 158 7179 3200
[email protected]
No. 1306-13F, C23 Software New Town, Huacheng Avenue, Wuhan, 430076, China

Contact Us

• Flat PDC Cutter

Flat PDC Cutter features a flat structure for uniform force distribution, exceptional wear resistance for long service life, and a versatile, cost-effective design.

E-MAIL US

CONTACT US

PRODUCTDESIGN

Flat PDC Cutters are manufactured through a unique high-temperature and high-pressure process using customized raw materials, complemented by technologies like finite element analysis, temperature, and pressure measurement, ensuring excellent performance. Structurally, they consist of a polycrystalline diamond layer (for wear resistance and impact toughness) and a tungsten carbide substrate (for support and stability).

Excellent Wear Resistance

Customized Services

Good Thermal Stability

Outstanding Impact Resistance

The Features of PCD Turning Tools

Ultra-High Hardness & Wear Resistance: Diamond hardness up to HV8000-10000
Ultra-Low Friction Coeffcient: Reduces built-up edge and enables mirror-fnish machining (Ra ≤ 0.1 um)
Excellent Thermal Conductivity: Rapid heat dissipation prevents thermal deformation of the workpiece
Chemical Stability: Resistant to acid and alkali corrosion, suitable for wet machining environments

PRODUCTSPECIFICATIONS

Type	Diameter	Height	Diamond layer height	Diamond chamfer size	Carbide chamfer size
OGF0808	8.00/8.20mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF0813	8.00/8.20mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1008	10.00mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1013	10.00mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1308	13.44mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1313	13.44mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1608	15.88/16.10mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1613	15.88/16.10mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1908	19.05mm	8.00mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
OGF1913	19.05mm	13.20mm	2.0/2.5/ 3.0mm	0.40mm×45°	0.76mm×45°
