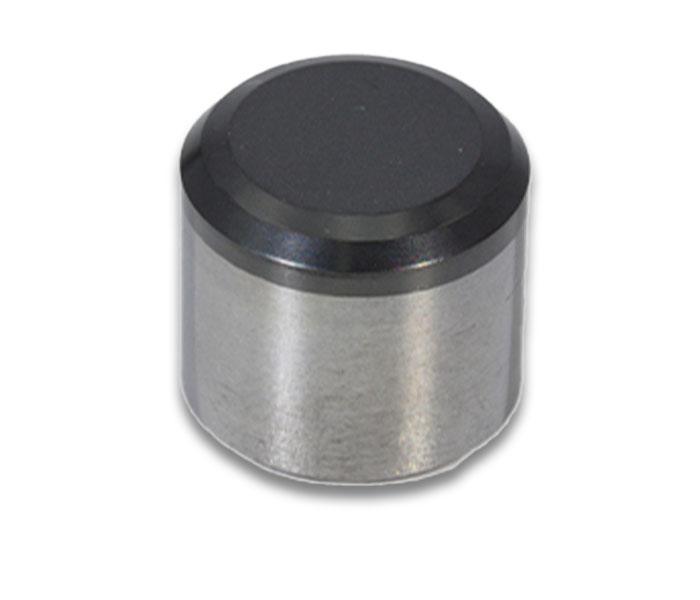

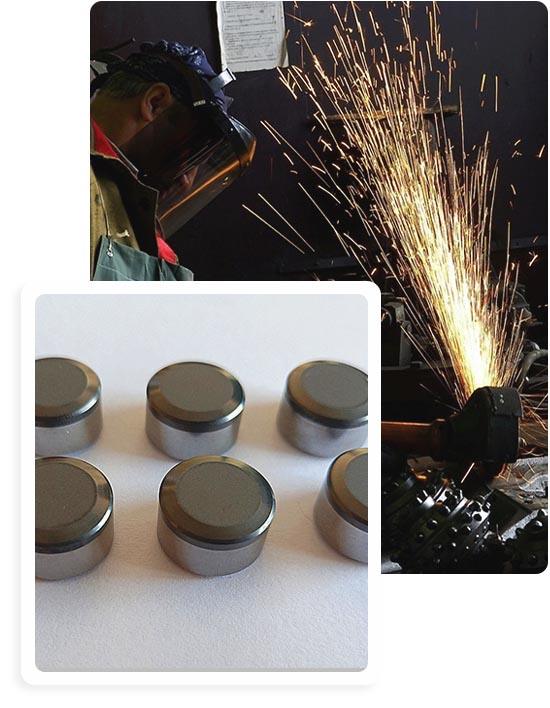

Flat PDC Cutter with Double chamfer

Flat PDC cutter with double chamfer reduces stress concentration, enhances shear resistance, and prevents delamination of the diamond layer for improved durability.

Application：Highly Abrasive Formations, Hard Rock Drilling, Oil & Gas, Water Wells, Geothermal Wellsg
Placement：Primary Cutter、Gauge Cutter
Size：1308 1310 1313 1610 1613 1616 1913 1916

PRODUCTDESIGN

The double-chamfered PDC cutter boasts a cutting-edge design, featuring two strategically positioned chamfers that surpass the single-chamfered flat PDC cutter. This thoughtful dual chamfer design provides the diamond layer of the cutter with greater cushioning, thereby significantly enhancing its impact resistance and wear resistance.

By absorbing and distributing the intense forces generated during drilling, the additional chamfer effectively shields the diamond layer from damage, reducing the risk of cracking and premature wear. This clever innovation leads to improved cutter durability, reduced maintenance, and extended service life, ultimately resulting in enhanced drilling efficiency and reduced operational costs.

Excellent Wear Resistance

Using a polycrystalline diamond layer, Flat PDC Cutter with Double chamfer have extremely high hardness.

Customized Services

Customized according to specific needs, including shape, wear resistance, impact resistance, etc.

Preeminent Thermal Stability

It is not easy to deform or fail due to thermal expansion, thus ensuring the continuity and safety of drilling operations.

Outstanding Impact Resistance

With strong shock and vibration, thereby extending the service life.

The Features of Flat PDC Cutter with Double chamfer

Double chamfer to reduce stress concentration
Increases shear resistance
Prevents delamination of the diamond layer

PRODUCTSPECIFICATIONS

Type	Diameter	Height	Diamond layer height	Diamond chamfer size		Carbide chamfer size
OGDC1308	13.44mm	8.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1310	13.44mm	10.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1313	13.44mm	13.20mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1610	15.88mm	10.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1613	15.88mm	13.20mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1616	15.88mm	16.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1913	19.05mm	13.20mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1916	19.05mm	16.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°

OURADVANTAGES

These distinct advantages can significantly aid Field Diamond in distinguishing itself amidst the fiercely competitive market landscape, effectively bolstering its overall competitiveness and positioning it as a leading player in its industry.

Leading Technology Innovation
High Production Efficiency
Optimized Cost Control
Strict Quality Control
Green and Environmentally Friendly Production

16K+

Customer

Satisfied

500+

Campaigns

98%

Client Satisfaction

7+

Years Experiences

15+

Certified Experts

APPLICATIONAREAS

Natural gas & Oiloperation ——

Down-the-hole hammer ——

Water well building ——

Geological

exploration ——

• All Projects

With the strength and impact resistance of cemented carbide, it is an ideal material for manufacturing wear-resistant tools such as cutting tools and drills, and has a wide range of applications in oil drilling, geological exploration, coal mine drills, mechanical processing tools and other industries.

With its exceptional strength and impact resistance, cemented carbide is an ideal material for manufacturing wear-resistant tools, widely applied in oil drilling, geological exploration, mining, machinery, and more.

More applications

FACTORYSHOWCASE

Field Diamond help companies stand out in the fierce market competition.

Our factory integrates advanced equipment, exquisite technology and efficient management, and ensures excellent product quality with strict quality control system. We have a professional research and development team, continuous innovation, to meet the needs of diversified markets. Large-scale production to reduce costs, to provide cost-effective quality products, to win customer trust and praise.

325+

Complete Projects

15+

Certified Experts

750+

Innovative Solutions Deployed

1000+

Milestones Achieved in Development

Scale production

Advanced equipment, production processes.

High-effect

High degree of equipment automation, excellent product quality and stability.

Lean manufacturing

Intelligent and efficient equipment, streamlined and smooth process.

PRODUCTCERTIFICATES

The company’s honor certificate highlights the strength of the enterprise, enhances the brand image, enhances customer trust, helps market expansion, and promotes cooperation opportunities.

Credibility Enhancement

Company certificates directly reflect corporate credibility, significantly boosting the trust of customers and partners.

Market Expansion

Attract more potential customers and partners, and bring more business opportunities for enterprises.

Compliance Assurance

Companies can demonstrate compliance with industry standards and legal and regulatory requirements to reduce operational risk.

CONTACTUS

+86 158 7179 3200
[email protected]
No. 1306-13F, C23 Software New Town, Huacheng Avenue, Wuhan, 430076, China

Contact Us

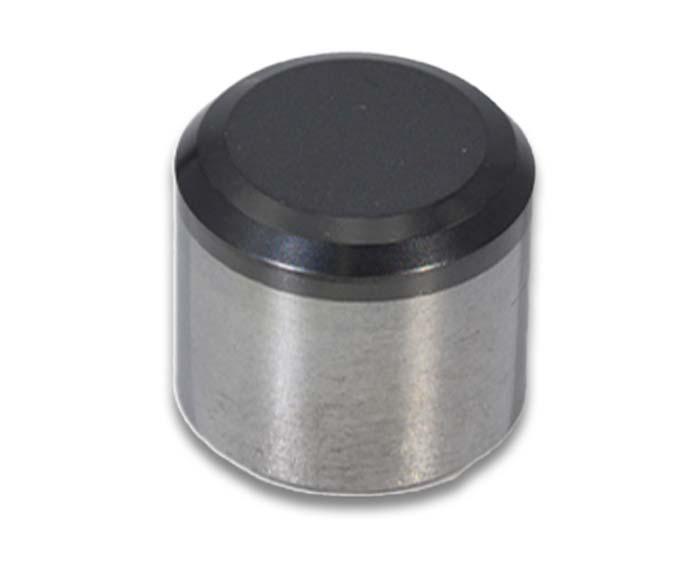

• Double Chamfer PDC Shaped

The double-chamfered PDC cutter has two chamfers, adding one more chamfer compared to the flat PDC cutter.

E-MAIL US

CONTACT US

PRODUCTDESIGN

The double-chamfered PDC cutter boasts a cutting-edge design, featuring two strategically positioned chamfers that surpass the single-chamfered flat PDC cutter. This thoughtful dual chamfer design provides the diamond layer of the cutter with greater cushioning, thereby significantly enhancing its impact resistance and wear resistance.

Excellent Wear Resistance

Customized Services

Good Thermal Stability

Outstanding Impact Resistance

PRODUCTSPECIFICATIONS

Type	Diameter	Height	Diamond layer height	Diamond chamfer size		Carbide chamfer size
OGDC1308	13.44mm	8.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1310	13.44mm	10.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1313	13.44mm	13.20mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1610	15.88mm	10.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1613	15.88mm	13.20mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1616	15.88mm	16.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1913	19.05mm	13.20mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°
OGDC1916	19.05mm	16.00mm	2.8mm	0.50mm×70°	0.90mm×45°	0.76mm×45°

OURADVANTAGES

These distinct advantages can significantly aid Field Diamond in distinguishing itself amidst the fiercely competitive market landscape, effectively bolstering its overall competitiveness and positioning it as a leading player in its industry.

Leading Technology Innovation
High Production Efficiency
Optimized Cost Control
Strict Quality Control
Green and Environmentally Friendly Production

APPLICATIONAREAS

It is widely used in oil drilling, geological exploration, coal mine drilling rig, mechanical processing tools and other industries.

Natural gas &

Oil operation

Water well

building

Down-the-hole

hammer

Geological

exploration

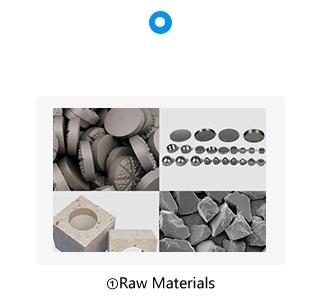

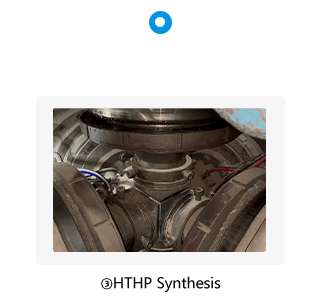

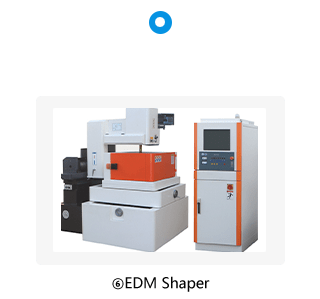

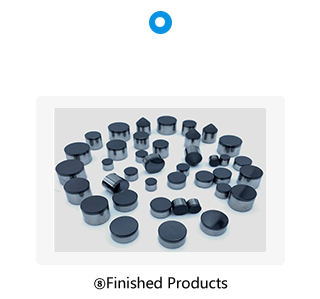

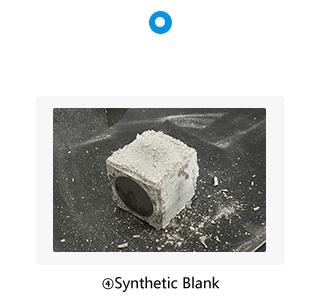

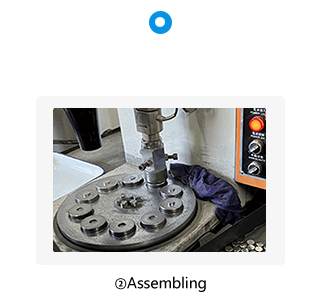

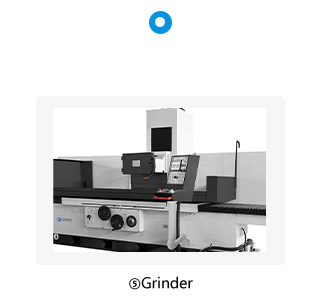

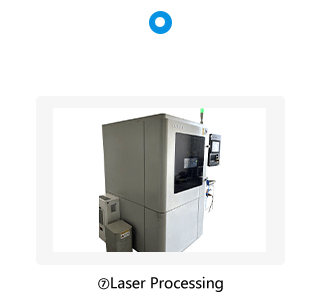

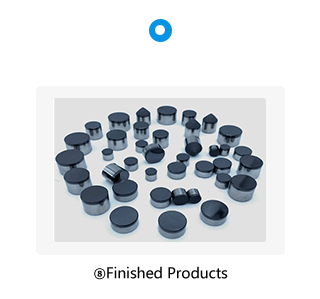

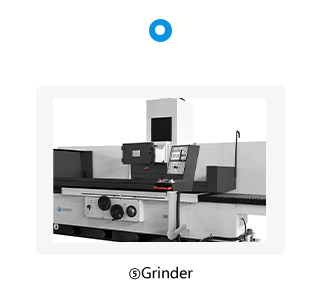

PRODUCTIONPROCESS

From the preparation of raw materials to the final product, the entire production process reflects the advanced nature and professionalism of modern production.

FACTORYSHOWCASE

Advanced equipment, production processes.

High degree of equipment automation, excellent product quality.

Intelligent and efficient equipment, streamlined and smooth process.

Field Diamond help companies stand out in the fierce market competition.

325+

Complete Projects

750+

Innovative Solutions Deployed

15+

Certified Experts

1000+

Milestones Achieved in Development

SOMEFAQ

● PDC Cutter FAQ

01 What are PDC composite products?

PDC composite sheet is a composite material sintered by diamond micropowder and cemented carbide substrate under ultra-high pressure and high temperature conditions, which combines the high hardness and wear resistance of diamond and the strength and impact toughness of cemented carbide.

02 What are the main application areas of PDC tools?

UsualPDC tools are widely used in oil drilling, geological exploration, mechanical processing, wood processing and other fields.

03 What are the advantages of PDC tools over traditional tools?

PDC tools have higher hardness, wear resistance and thermal stability, which can significantly improve the durability and processing quality of the tool, and have better economy.

04 How are PDC composites made?

The PDC composite sheet is made of natural or synthetic diamond powder and binder (including cobalt, nickel and other metals) sintered on the cemented carbide matrix at high temperature and pressure.

● Custom service and technical support FAQ

01 Do you offer product customization services?

Yes, we offer customized services for PDC tools to meet the specific needs of different customers.

02 What is the delivery time for customized products?

The delivery time for customized products depends on the specific customization content and production schedule. Generally, after receiving the customization request, we will assess it as soon as possible and provide an estimated delivery time.

03 What technical support do you offer?

We offer comprehensive technical support, including product selection consultation, installation guidance, troubleshooting, and resolution. Customers can contact us via phone, email, or online chat tools to obtain timely technical support.

● Production and processing of PDC tools FAQ

01 What is your production process for PDC composite products?

Our production process includes raw material preparation, mixing, sintering, grinding and polishing and other links, each link has undergone strict quality control to ensure stable and reliable product performance.

02 What is the production efficiency of PDC composite products?

We use advanced production equipment and technology, high production efficiency, can meet the needs of large orders.

03 What steps does the PDC tool process include?

The processing process of PDC tool includes the cutting of PDC composite sheet, blade welding, blade sharpening and other steps, each link needs precise control to ensure tool performance.

04 How does your company guarantee the machining accuracy of PDC composite slices?

We use advanced processing equipment and technology, while equipped with professional technical personnel for quality control, to ensure that the processing accuracy of PDC tools meet customer requirements.
