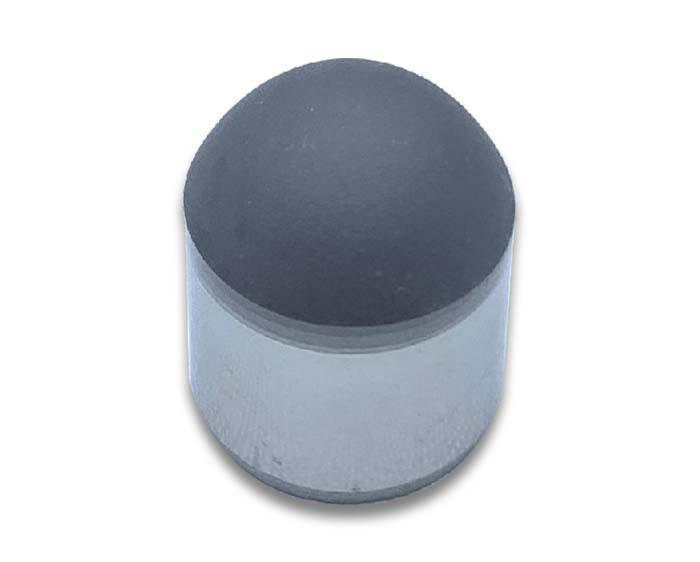

Dome PDC Cutter
Dome PDC cutter uses spherical geometry for superior impact resistance, ensures uniform heat dissipation to prevent thermal damage, and adapts to varied formations.
- Application：Heterogeneous Formations, Geothermal Wells, Coal Mining, Tunnel Construction
- Placement：Primary Cutter、Back Cutter、Gauge Cutter
- Size：0809 1214 1215 1318 1421 1422 1624 1826 1926
PRODUCTDESIGN

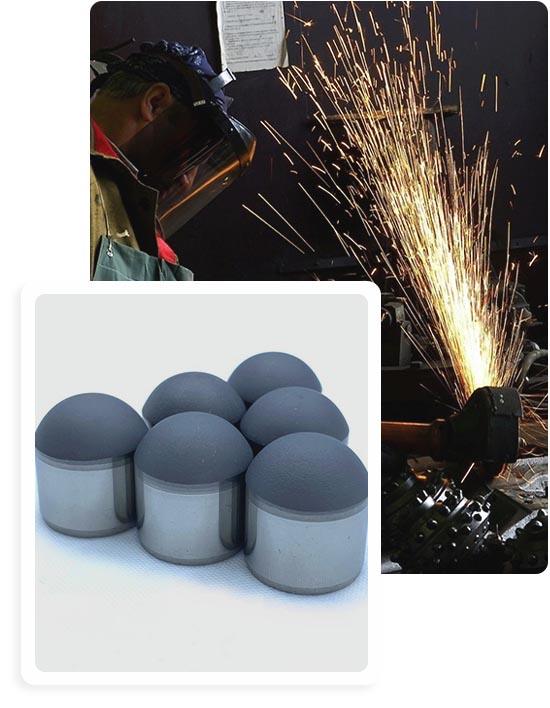

Dome PDC cutters, boasting a spherical shaped diamond layer, have earned a reputation for their unparalleled impact resistance and wear resistance. When integrated into DTH drill bits, they unlock remarkable enhancements in drilling efficiency and longevity. Particularly in formations rich in silica and quartz, notorious for their abrasive nature, Dome PDC cutters prove their mettle.
The spherical design enables even distribution of impact forces, minimizing wear and tear, while the diamond layer’s rounded shape reduces the risk of chipping and cracking. As a result, drilling operators can expect improved penetration rates, extended bit life, and reduced maintenance costs, making them an ideal choice for tackling the toughest, abrasive formations with confidence and precision.
Excellent Wear Resistance
Using a polycrystalline diamond layer, Dome PDC Cutter have extremely high hardness.
Customized Services
Customized according to specific needs, including shape, wear resistance, impact resistance, etc.
Preeminent Thermal Stability
It is not easy to deform or fail due to thermal expansion, thus ensuring the continuity and safety of drilling operations.
Outstanding Impact Resistance
With strong shock and vibration, thereby extending the service life.
The Features of Dome PDC Cutter
- Spherical geometry enhances impact resistance
- Uniform heat dissipation prevents thermal damage
- Adaptable to formation variability
PRODUCTSPECIFICATIONS
| Type | Diameter | Height | Diamond layer height |
| OGMD0809 | 7.978mm | 9.69mm | 2.69mm |
| OGMD1214 | 12.845mm | 14.70mm | 4.79mm |
| OGMD1215 | 12.000mm | 15.40mm | 4.64mm |
| OGMD1318 | 13.06mm | 18.00mm | 5.2mm |
| OGMD1421 | 14.00mm | 21.00mm | 5.52mm |
| OGMD1422 | 14.07mm | 22.50mm | 5.52mm |
| OGMD1624 | 16.07mm | 24.10mm | 6.63mm |
| OGMD1826 | 18.18mm | 26.00mm | 5.70mm |
| OGMD1926 | 19.14mm | 26.00mm | 7.28mm |
OURADVANTAGES
These distinct advantages can significantly aid Field Diamond in distinguishing itself amidst the fiercely competitive market landscape, effectively bolstering its overall competitiveness and positioning it as a leading player in its industry.
- Leading Technology Innovation
- High Production Efficiency
- Optimized Cost Control
- Strict Quality Control
- Green and Environmentally Friendly Production
16K+
Customer
Satisfied
500+
Campaigns
98%
Client Satisfaction
7+
Years Experiences
15+
Certified Experts
APPLICATIONAREAS
Natural gas & Oiloperation ——
Down-the-hole hammer ——
Water well building ——
Geological
exploration ——
• All Projects
With the strength and impact resistance of cemented carbide, it is an ideal material for manufacturing wear-resistant tools such as cutting tools and drills, and has a wide range of applications in oil drilling, geological exploration, coal mine drills, mechanical processing tools and other industries.
With its exceptional strength and impact resistance, cemented carbide is an ideal material for manufacturing wear-resistant tools, widely applied in oil drilling, geological exploration, mining, machinery, and more.
FACTORYSHOWCASE
Field Diamond help companies stand out in the fierce market competition.
Our factory integrates advanced equipment, exquisite technology and efficient management, and ensures excellent product quality with strict quality control system. We have a professional research and development team, continuous innovation, to meet the needs of diversified markets. Large-scale production to reduce costs, to provide cost-effective quality products, to win customer trust and praise.
325+
Complete Projects
15+
Certified Experts
750+
Innovative Solutions Deployed
1000+
Milestones Achieved in Development
Scale production
Advanced equipment, production processes.
High-effect
High degree of equipment automation, excellent product quality and stability.
Lean manufacturing
Intelligent and efficient equipment, streamlined and smooth process.
PRODUCTCERTIFICATES
The company’s honor certificate highlights the strength of the enterprise, enhances the brand image, enhances customer trust, helps market expansion, and promotes cooperation opportunities.
Credibility Enhancement
Company certificates directly reflect corporate credibility, significantly boosting the trust of customers and partners.
Market Expansion
Attract more potential customers and partners, and bring more business opportunities for enterprises.
Compliance Assurance
Companies can demonstrate compliance with industry standards and legal and regulatory requirements to reduce operational risk.
CONTACTUS
- +86 158 7179 3200
- [email protected]
- No. 1306-13F, C23 Software New Town, Huacheng Avenue, Wuhan, 430076, China
• Dome PDC Cutter

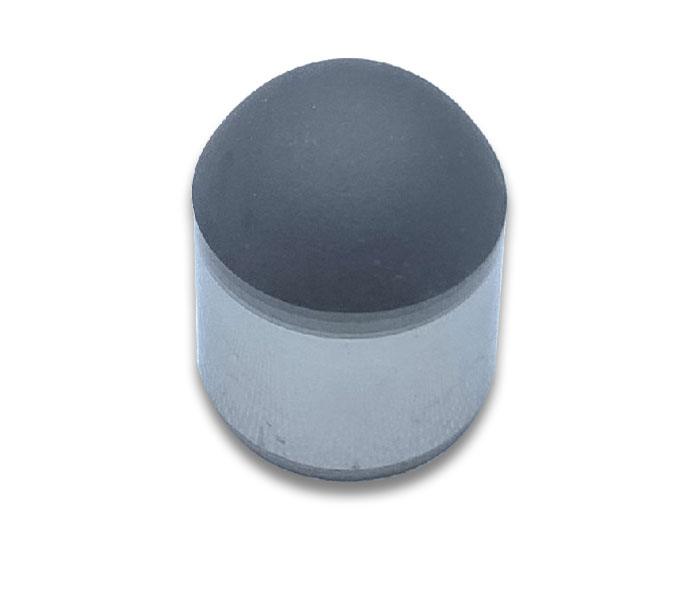

Dome PDC cutters are designed with a spherical shaped diamond layer, known for their exceptional impact resistance and wear resistance.
