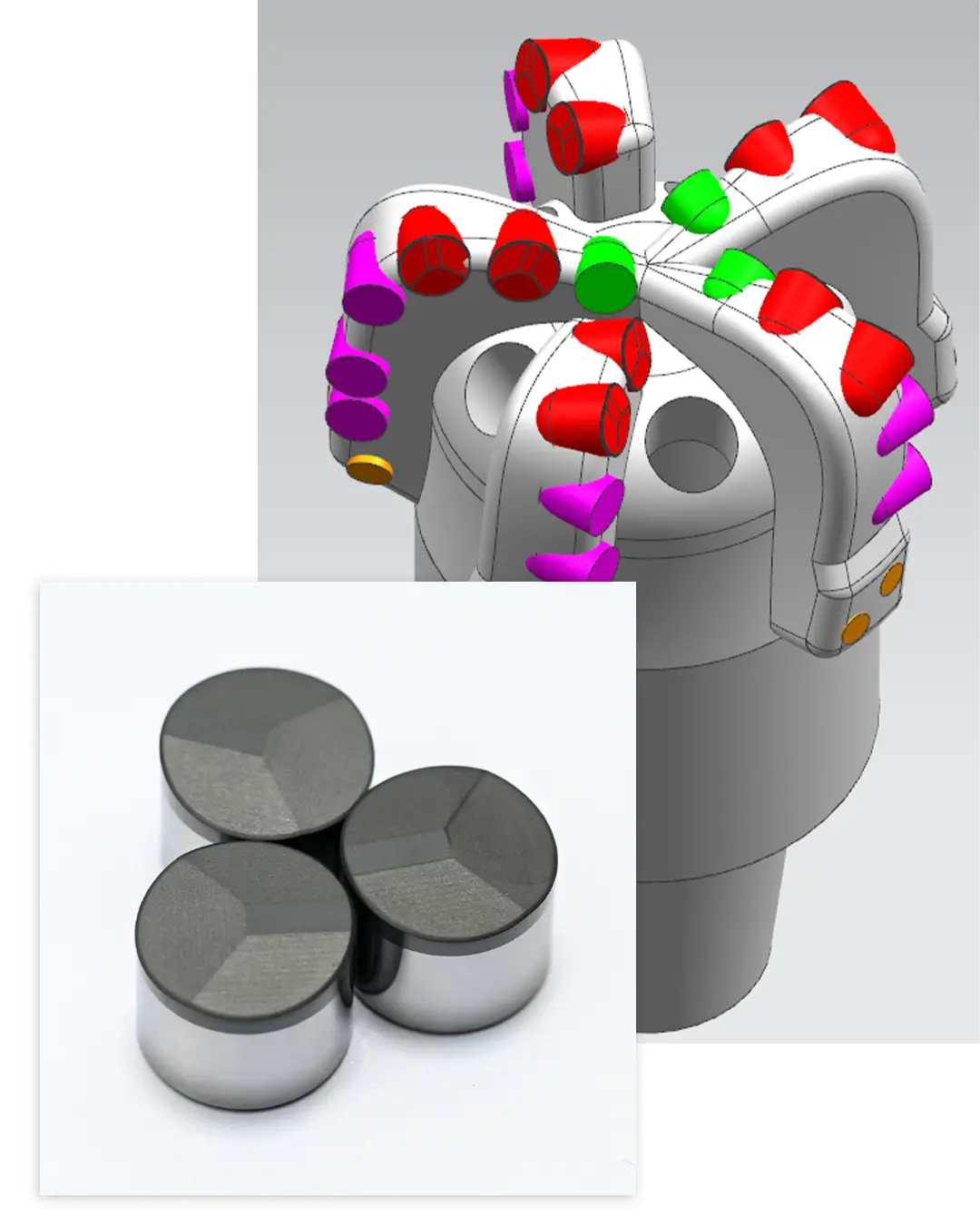

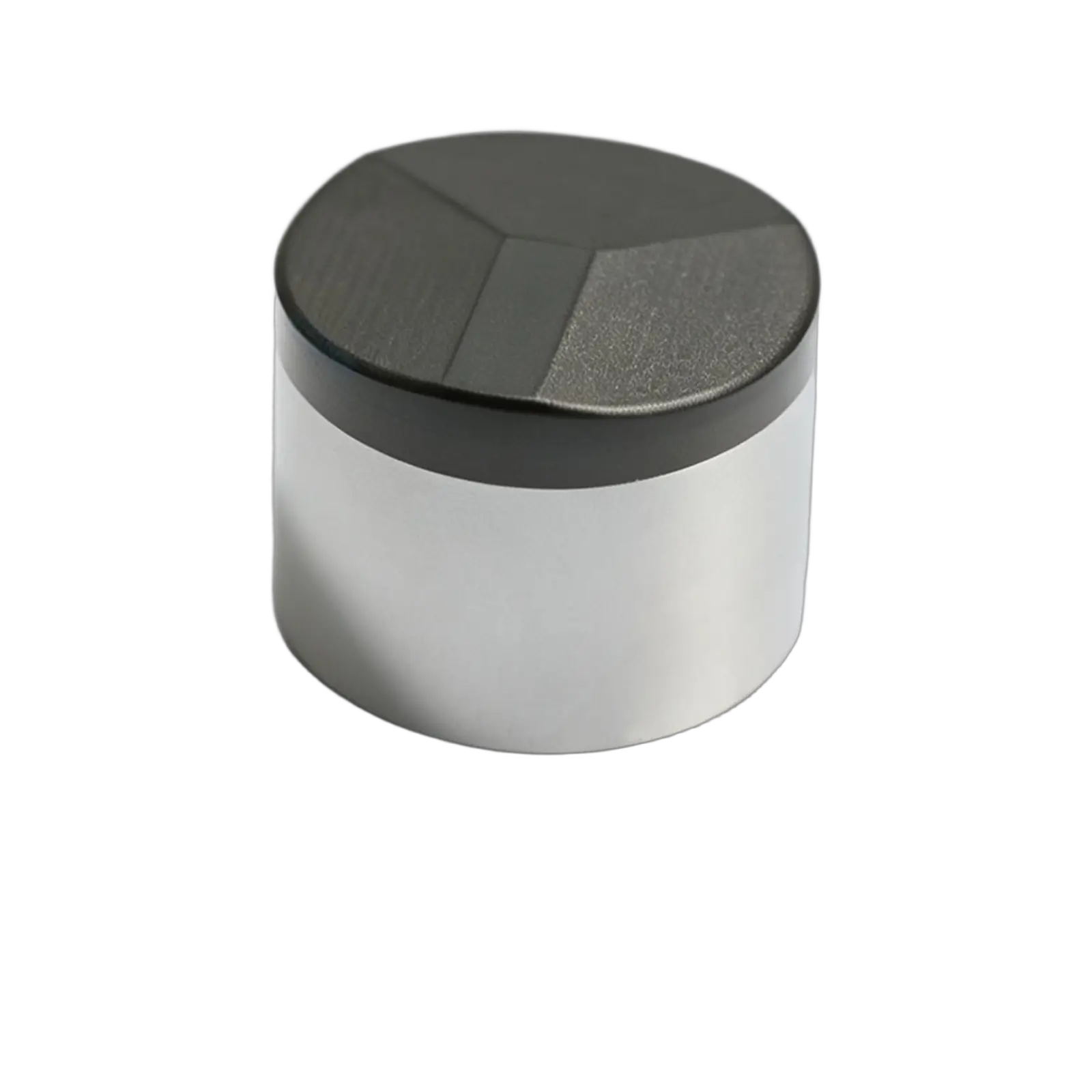

4D shaped PDC Cutter
4D shaped PDC cutter features an asymmetric design to suppress stick-slip vibration, compound curved surfaces for improved cuttings evacuation, and excels at ultra-high-speed drilling.
- Application：Challenging Directional Wells Ultra-Deep Wells
- Placement：Primary Cutter、Pilot Cutter
- Size：1308 1313 1613 1913
PRODUCTDESIGN
The 4D PDC cutter marks a significant leap forward, building upon the 3D-shaped design with cutting-edge innovations. The inclined-plane structure on the diamond surface revolutionizes cutting efficiency, allowing for more aggressive drilling and faster rock removal. Moreover, its enhanced impact resistance and durability make it the perfect candidate for tackling hard interbedded geological formations, where other cutters might falter.
This robust design enables the 4D PDC cutter to withstand intense shock and abrasion, maintaining its cutting prowess even in the most unforgiving environments. As a result, drilling operators can confidently tackle complex formations, enjoying improved rates of penetration, reduced bit wear, and enhanced overall drilling performance.
Excellent Wear Resistance
Using a polycrystalline diamond layer, 4D shaped PDC Cutter have extremely high hardness.
Customized Services
Customized according to specific needs, including shape, wear resistance, impact resistance, etc.
Preeminent Thermal Stability
It is not easy to deform or fail due to thermal expansion, thus ensuring the continuity and safety of drilling operations.
Outstanding Impact Resistance
With strong shock and vibration, thereby extending the service life.
The Features of 4D shaped PDC Cutter
- Asymmetric design to suppress stick-slip vibration
- Compound curved surface improves cuttings evacuation
- Specialized for ultra-high mechanical drilling speeds
PRODUCTSPECIFICATIONS
| Type | Diameter | Height | Diamond layer height | Diamond chamfer size | Carbide chamfer size |
| OGFD1308 | 13.44mm | 8.00mm | 2.8mm | 0.50mm×45° | 0.76mm×45° |
| OGFD1313 | 13.44mm | 13.20mm | 2.8mm | 0.50mm×45° | 0.76mm×45° |
| OGFD1613 | 15.88mm | 13.20mm | 2.8mm | 0.50mm×45° | 0.76mm×45° |
| OGFD1913 | 19.05mm | 13.20mm | 2.8mm | 0.50mm×45° | 0.76mm×45° |
OURADVANTAGES
These distinct advantages can significantly aid Field Diamond in distinguishing itself amidst the fiercely competitive market landscape, effectively bolstering its overall competitiveness and positioning it as a leading player in its industry.
- Leading Technology Innovation
- High Production Efficiency
- Optimized Cost Control
- Strict Quality Control
- Green and Environmentally Friendly Production
16K+
Customer
Satisfied
500+
Campaigns
98%
Client Satisfaction
7+
Years Experiences
15+
Certified Experts
APPLICATIONAREAS
Natural gas & Oiloperation ——
Down-the-hole hammer ——
Water well building ——
Geological
exploration ——
• All Projects
With the strength and impact resistance of cemented carbide, it is an ideal material for manufacturing wear-resistant tools such as cutting tools and drills, and has a wide range of applications in oil drilling, geological exploration, coal mine drills, mechanical processing tools and other industries.
With its exceptional strength and impact resistance, cemented carbide is an ideal material for manufacturing wear-resistant tools, widely applied in oil drilling, geological exploration, mining, machinery, and more.
FACTORYSHOWCASE
Field Diamond help companies stand out in the fierce market competition.
Our factory integrates advanced equipment, exquisite technology and efficient management, and ensures excellent product quality with strict quality control system. We have a professional research and development team, continuous innovation, to meet the needs of diversified markets. Large-scale production to reduce costs, to provide cost-effective quality products, to win customer trust and praise.
325+
Complete Projects
15+
Certified Experts
750+
Innovative Solutions Deployed
1000+
Milestones Achieved in Development
Scale production
Advanced equipment, production processes.
High-effect
High degree of equipment automation, excellent product quality and stability.
Lean manufacturing
Intelligent and efficient equipment, streamlined and smooth process.
PRODUCTCERTIFICATES
The company’s honor certificate highlights the strength of the enterprise, enhances the brand image, enhances customer trust, helps market expansion, and promotes cooperation opportunities.
Credibility Enhancement
Company certificates directly reflect corporate credibility, significantly boosting the trust of customers and partners.
Market Expansion
Attract more potential customers and partners, and bring more business opportunities for enterprises.
Compliance Assurance
Companies can demonstrate compliance with industry standards and legal and regulatory requirements to reduce operational risk.
CONTACTUS
- +86 158 7179 3200
- [email protected]
- No. 1306-13F, C23 Software New Town, Huacheng Avenue, Wuhan, 430076, China
• 4D shaped PDC Cutter
The 4D PDC cutter represents an advanced iteration of the 3D-shaped, boasting optimized design features such as an inclined-plane structure on the diamond surface, which significantly improves cutting efficiency.
PRODUCTDESIGN
The 4D PDC cutter marks a significant leap forward, building upon the 3D-shaped design with cutting-edge innovations. The inclined-plane structure on the diamond surface revolutionizes cutting efficiency, allowing for more aggressive drilling and faster rock removal. Moreover, its enhanced impact resistance and durability make it the perfect candidate for tackling hard interbedded geological formations, where other cutters might falter.
Excellent Wear Resistance
Customized Services
Good Thermal Stability
Outstanding Impact Resistance
PRODUCTSPECIFICATIONS
| Type | Diameter | Height | Diamond layer height | Diamond chamfer size | Carbide chamfer size |
| OGFD1308 | 13.44mm | 8.00mm | 2.8mm | 0.50mm×45° | 0.76mm×45° |
| OGFD1313 | 13.44mm | 13.20mm | 2.8mm | 0.50mm×45° | 0.76mm×45° |
| OGFD1613 | 15.88mm | 13.20mm | 2.8mm | 0.50mm×45° | 0.76mm×45° |
| OGFD1913 | 19.05mm | 13.20mm | 2.8mm | 0.50mm×45° | 0.76mm×45° |
OURADVANTAGES
These distinct advantages can significantly aid Field Diamond in distinguishing itself amidst the fiercely competitive market landscape, effectively bolstering its overall competitiveness and positioning it as a leading player in its industry.
- Leading Technology Innovation
- High Production Efficiency
- Optimized Cost Control
- Strict Quality Control
- Green and Environmentally Friendly Production
APPLICATIONAREAS
It is widely used in oil drilling, geological exploration, coal mine drilling rig, mechanical processing tools and other industries.
Natural gas &
Oil operation
Water well
building
Down-the-hole
hammer
Geological
exploration
PRODUCTIONPROCESS
From the preparation of raw materials to the final product, the entire production process reflects the advanced nature and professionalism of modern production.
FACTORYSHOWCASE
Advanced equipment, production processes.
High degree of equipment automation, excellent product quality.
Intelligent and efficient equipment, streamlined and smooth process.
Field Diamond help companies stand out in the fierce market competition.
325+
Complete Projects
750+
Innovative Solutions Deployed
15+
Certified Experts
1000+
Milestones Achieved in Development
SOMEFAQ
● PDC Cutter FAQ
01 What are PDC composite products?
PDC composite sheet is a composite material sintered by diamond micropowder and cemented carbide substrate under ultra-high pressure and high temperature conditions, which combines the high hardness and wear resistance of diamond and the strength and impact toughness of cemented carbide.
02 What are the main application areas of PDC tools?
UsualPDC tools are widely used in oil drilling, geological exploration, mechanical processing, wood processing and other fields.
03 What are the advantages of PDC tools over traditional tools?
PDC tools have higher hardness, wear resistance and thermal stability, which can significantly improve the durability and processing quality of the tool, and have better economy.
04 How are PDC composites made?
The PDC composite sheet is made of natural or synthetic diamond powder and binder (including cobalt, nickel and other metals) sintered on the cemented carbide matrix at high temperature and pressure.
● Custom service and technical support FAQ
01 Do you offer product customization services?
Yes, we offer customized services for PDC tools to meet the specific needs of different customers.
02 What is the delivery time for customized products?
The delivery time for customized products depends on the specific customization content and production schedule. Generally, after receiving the customization request, we will assess it as soon as possible and provide an estimated delivery time.
03 What technical support do you offer?
We offer comprehensive technical support, including product selection consultation, installation guidance, troubleshooting, and resolution. Customers can contact us via phone, email, or online chat tools to obtain timely technical support.
● Production and processing of PDC tools FAQ
01 What is your production process for PDC composite products?
Our production process includes raw material preparation, mixing, sintering, grinding and polishing and other links, each link has undergone strict quality control to ensure stable and reliable product performance.
02 What is the production efficiency of PDC composite products?
We use advanced production equipment and technology, high production efficiency, can meet the needs of large orders.
03 What steps does the PDC tool process include?
The processing process of PDC tool includes the cutting of PDC composite sheet, blade welding, blade sharpening and other steps, each link needs precise control to ensure tool performance.
04 How does your company guarantee the machining accuracy of PDC composite slices?
We use advanced processing equipment and technology, while equipped with professional technical personnel for quality control, to ensure that the processing accuracy of PDC tools meet customer requirements.
● Order FAQ
01 How can I place an order for your products?
You can order online through our official website, or you can contact our sales team directly for product information and help. For large purchases or customized needs, it is recommended to communicate in detail by email or phone, so that we can provide you with more accurate quotes and services.
02 How long does it usually take to ship after order confirmation?
Generally, standard products are shipped within 3-7 working days after order confirmation and payment. For customized or specially configured products, the shipping time may be slightly longer, subject to our production schedule and customer communication. We will notify you of the estimated shipping date in advance.
03 What payment methods do you accept?
We support multiple payment methods, including but not limited to bank transfers, credit card payments (through third-party payment platforms), Alipay, WeChat Pay, etc. For specific payment methods and operation guides
